107" Veneer Guillotine, Slicer
VN-107SC
Features:
- Heavy casting base for stable performance and cutting strength.
- Fully automatic cutting cycle by servo motor with PLC controller for quality and easily operation.
- 2000 sets of memory for mass production selections.
- Two sets of turbines to pull the cutting blade, it provides extreme accuracy and high speed production.
- Fast and easy change cutting blade mechanism.
- Guarding belt to prevent the material drop cutting line.
- Optical laser light to indicate the cutting line position.
- Precision bolt screw for smooth and fast movement setting.
- Hydraulic system for the hold-down and cutting system.

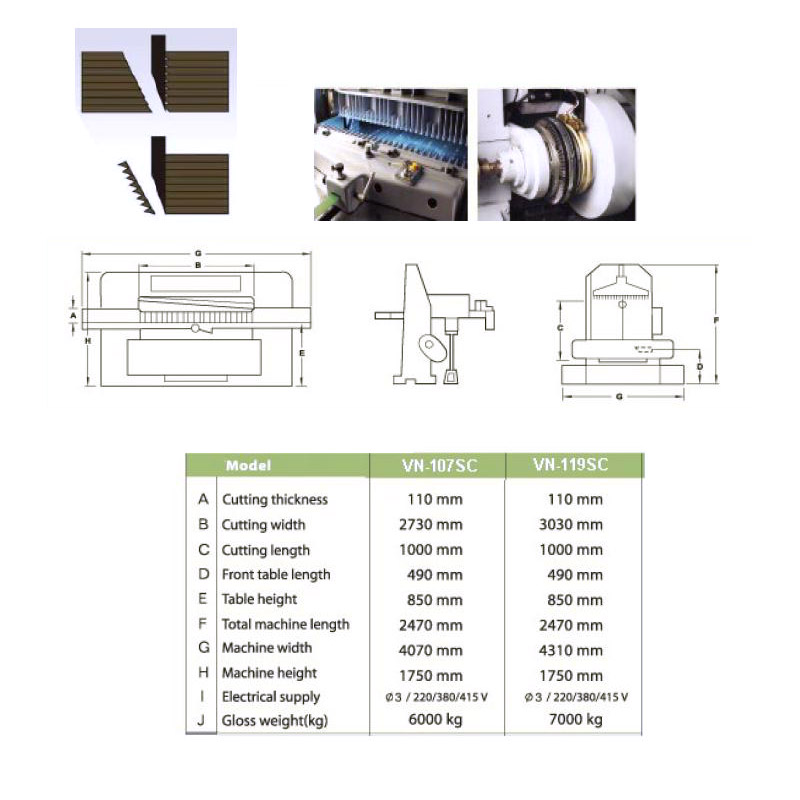

Specification:
| SPECIFICATIONS |
VN-107SC |
VN-119SC |
| Max. Cutting Thickness |
4-3/8" |
4-3/8" |
| Max. Cutting Length |
107-1/2"" |
119-1/4"" |
| Max. Cutting Width |
19-1/4" |
19-1/4" |
| Front Table Length |
33-1/2" |
33-1/2" |
| Main Motor |
5 HP |
7.5 HP |
| Hydraulic Pump Motor |
3 HP |
3 HP |
| Feed Motor |
1 HP |
1 HP |
| Air Blower |
1HP |
1HP |
| Machine Size (L x W x H) |
160" x 97" x 69" |
170" x 97" x 69" |
| G.W. |
13000 LBS |
15000 LBS |
