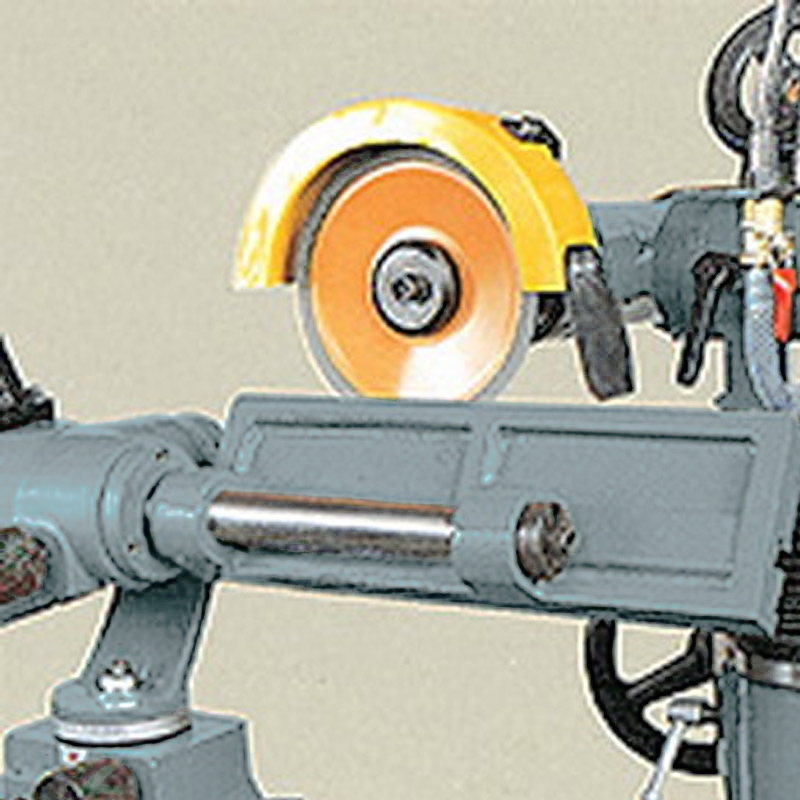

Features:
- Universal design for grinding or reshaping all kinds of shaper cutters such as finger jointer, profile, milling, reversible bevel tenon, and moulder.
- Also suitable for router bits, straight knifes and circle saw blades.
- Employed with straight linear motion guides bearing to ensure longitudinal feed traverse smoothly and accurately.
- Grinding for conventional knives with large volume and full of variety.
- High precision and durability.
- Heavy sheet metal cabinet stand and cast iron body.
Specification:
| SPECIFICATIONS | TG-3000 | TG-5000 | TG-6000 |
| Grinding Capacity | |||
| Cutter (Dia. x W) | 9" x 8" | N/A | N/A |
| Carbide Saw (Dia. x T) | 20" x 3/8" | N/A | N/A |
| Carbide Knife (L x W x T) | 12" x 1½" x ¼" | 25" x 3" x 5/8" | 25" x 3" x 5/8" |
| Router Bits (Shank) Max. | ½" | N/A | N/A |
| Grinding Wheel Size | 6" x 5/8" | 4" x 2" x 5/8" | 10" x 2/3" x 1" |
| Grinding Head Travel | 14" | 26" | 26" |
| Grinding Wheel Speed | 5000RPM | 1700 RPM | 1700 RPM |
| Fine Grinding Wheel Size | N/A | --- | 4" x 2" x 2" |
| Grinding Wheel Motor | 1 HP | ½ HP | 1 HP |
| Fine Wheel Motor | N/A | --- | --- |
| Table Size | 28' L x 8" W | 26" L | 27" L |
| Table Travel | 20" x 7" | (Wheel) | 28" |
| Table Travel Motor | --- | ¼ HP | ¼ HP |
| Coolant Pump Motor | 1/8 HP | N/A | 1/8 HP |
| N.W. (LBS) | 748 LBS | 340 LBS | 660 LBS |
| G. W. (LBS) | 924 LBS | 430 LBS | 836 LBS |
