Frame / Rim / Box Parts Multiple Cutting Saw

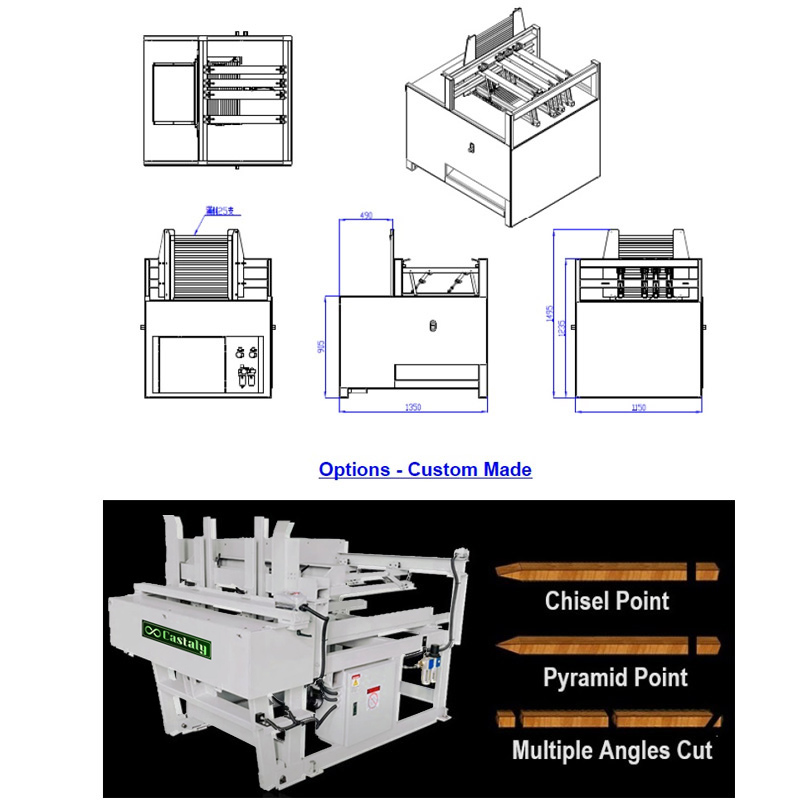

(Special Request by Custom Made, Please Call for the details.)

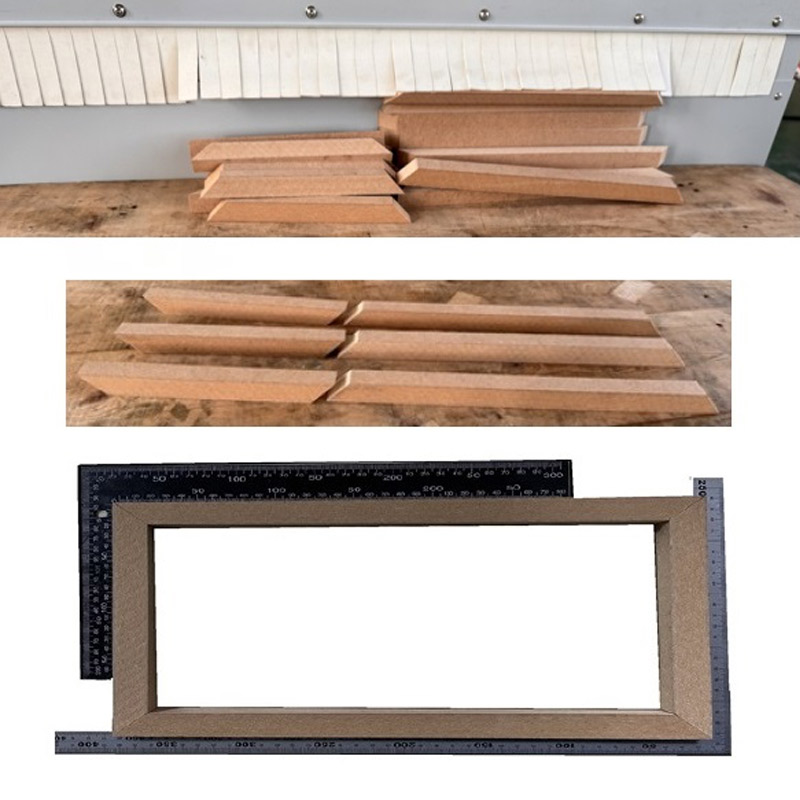

• Automatic materials cutting prepare, multiple pieces per cycle, 30 to 90 degrees, suitable for Frame, Rim, Box assembly.
• Fast cutting speed and cycle for mass production. (Up to 1 pcs per second)
• Auto In-Feed Magazine for quick lumber stacking input.& store, continue feeding for cutting cycle.
• Automatic infeed to outfeed cutting cycle, easy Operation and maintenance.
• One saw is fixed position, and all other saws are adjustable.
• Intermediate saw moving range: 10"~13.5" (hand-cranked wheel & mechanical digital display).
• Tail saw moving range: 17.5"~23" (hand wheel & mechanical digital display).
• The pusher motor 1HP motor with gear box, controlled by inverter for variable speed feeding.
• Added safety of the pressure protection pushing mechanism.
• The self-weight structure upper pressing adopts, plus pneumatic cylinder pressing the lumber during the complete cutting process.
• Each saw & feed motor has its separate operating magnetic starter & overload protector.

• Work-piece Length: 22".to 24”
• Work-piece Height: 7/8" to 1"
• Work-piece Width: 3/4" to 1”
• Cutting Angles 30 to 90 degrees
• Saw Blades 12” Diameter
• Saw Motor 3 HP x 3 Units
• Auto Feed Magazine 1 Unit
• Feed Motor 1 HP x 1 Unit.
• Continue Cutting Speed: 2,000 to 4,000 pieces pcs per hour,
• Air Pressure 90 psi
