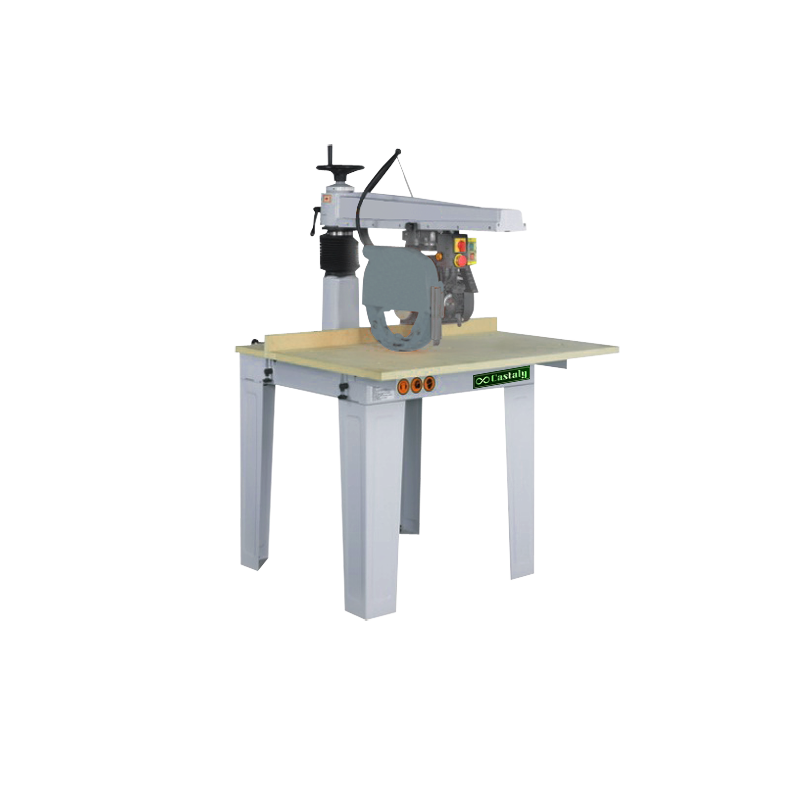

12" Radial Arm Saw

RS-612

Price/ea
$3,990.00
Back

Features:

  • With laser light to show straight cutting line.
  • Rail is treated and hardened, precision ground for maximum wear resistance and slide accuracy.
  • Saw head runs on ball bearings giving effortless and smooth movement.
  • One piece casting iron arm for durability usage.
  • High performance self-braking motor for safety protection.
  • Quick positions stop at 45º, right and left.
  • Saw head is firmly set at any angle desired.
  • Safety saw blade guard.
  • Anti-kickback attachment included.
  • Full power industrial motor for durabilty usage.
  • Overload protection switch.
  • Heavy sheet metal stand.

Specification:

SPECIFICATIONS RS-660 RS-640 RS-612
Motor 4.5 HP, 3 PH, 230 V 4.5 HP, 3 PH, 230 V 2 HP, 1 PH, 110V
Motor Speed 2900 RPM 2900 RPM 2900 RPM
No. of Head Travel Bearing 8 8 4
Spindle Diameter 1" 1" 1"
Saw Blade Diameter 14 ~ 16" 12 ~ 14" 10 ~ 12"
Max. Trimming Width 43-1/4" 33¾" 27½"
Max. Depth of Cut 5-1/8" 4-1/8" 3-1/8"
Max. Cross Cut Length 35" 24½" 16½"
Table Size (L x W) 53" x 49¼" 35" x 43¼" 25½" x 31½"
Head Swiveling (Horizontal) 0° ~ 180° 0° ~ 180° 0° ~ 180°
Head Tilting (Vertical) 0° ~ 90° 0° ~ 90° 0° ~ 90°
Machine Size 45" x 49" x 63" 44" x 43¼" x 69" 31½" x 25½" x 43¼"
N.W. 550 LBS 510 LBS 330 LBS
G.W. 640 LBS 595 LBS 380 LBS
