CNC 3 Spindles Machine Center One 83” Zone or Two 47” Zones

Outstanding Features:

• CNC-83-DU CNC Multi-Spindles machine center is ideal for high-speed slot milling on straight and curved wood.
• This machine is designed with 3 spindles, allowing for machining 3 pieces of wood simultaneously.
• Equipped with an advanced CNC controller, the machine makes slot milling operations more flexible and easier.
• Suitable for high-speed slot milling for kitchen cabinet frames, chair, and table legs, etc.
• Applicable for straight and curved wood.
• 3 Spindles are simultaneously controlled. Each spindle is controlled through a frequency inverter.
• Powerful CNC controller permits slot milling to be performed with ease and helps to dramatically increase throughput.
• X, Y, Z-axis movements are driven by servo motors with high speed and high positioning accuracy.
• X, Y, Z-axis are transmitted through ball screws.
• X, Y, Z-axis sideways and clamping mechanism slideways are fitted with linear motion guides.

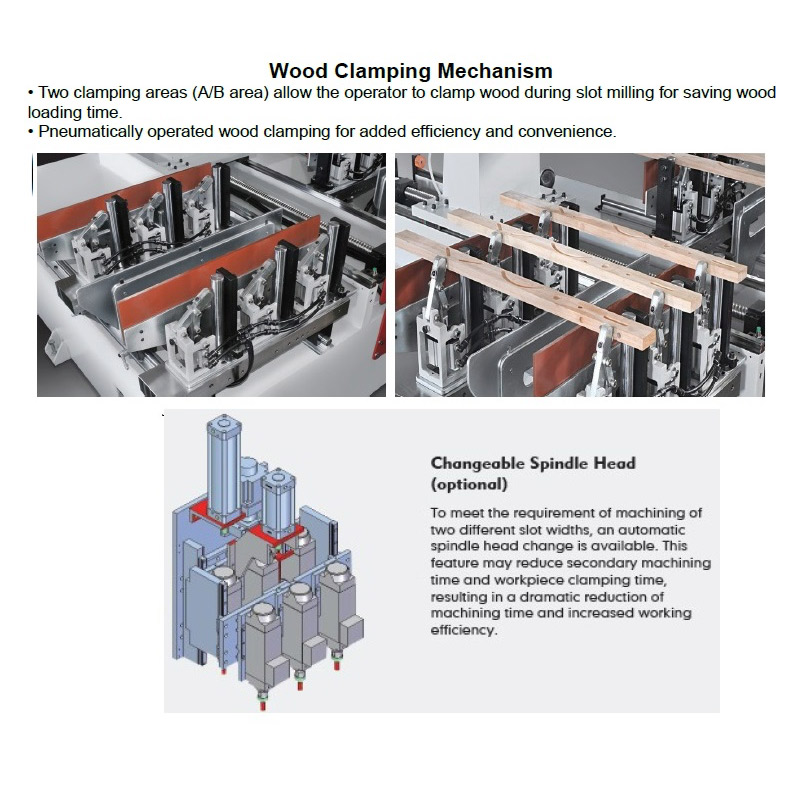

(Optional)

With the Quick-Change Spindle, no secondary machining is required. Two slot widths can be machined at a time. This not only dramatically shortens workpiece handling time by the operator, but also upgrades working efficiency and market competitiveness.

• Cutting capacity
  • Maximum workpiece size (One Zone) 83-3/8” Length x 1, 3-3/8” Width
  • Maximum workpiece size (Two Zones) 47-1/4” Length x 2, 3-3/8” Width
  • Maximum working height 4”
• Number of spindle 3 spindles
• Spindle speed 16,000 R.P.M.
• Spindle motor 3 HP x 3 units
• X-axis 1.5 kw x 1 unit
• Y-axis 1 kw x 1 unit
• Z-axis 1 kw x 1 unit
• Total horsepower 10.25 kw (13.7 HP)
• vWorking air pressure 6 kg/cm2
