8 FT a 10 Head Double End Tenoner

SET-810NU

Price/ea
$158,900.00
Back

Features:

  • The automatic high-speed through feed device allows for perfect finishing at speeds ranging from 20~66 FPM.
  • Suitable for mass production of wood working factory for processing of double end cutting, tenoning, grooving, moulding, and sanding.
  • It is a powerful machine great for heavy-duty production.
  • In addition to the double end cutting, all the settings and other processing can also be executed with high accuracy.
  • Since the machine is so versatile, it should be one of the most satisfactory equipments for bulk production lumber-processing factories.
  • The specially designed numeric controller allows quick setting of sizes, for the tolerance within 0.004”.
  • Variable speed, through feed, wide rubber pad, spring-loaded dots conveyor for the best finish selections.
  • Heavy-duty powered pressure rolls at top of wide width conveyor to hold the material tight to prevent sliding during the cutting process.
  • Shaper head can be move up & down, forward & backward.
  • Equipped with industrial motor for full power cutting and sanding capacity.
  • Trim saw heads can be tilted for different angular setup.
  • Heavy cast iron base for durability usage.

Specification:

SPECIFICATIONS SET-86DET SET-88DET SET-810NU
Max. Working Size
Thickness 3" 3" 3"
Length 96" 96" 96"
Miter Saw Blade 12" x 1" Dia. 12" x 1" Dia. 12" x 1" Dia.
Grooving Saw Blade 10" x 1" Dia. 10" x 1" Dia. 10" x 1" Dia.
Shaper Cutter 6" ~ 10" x 1" Dia. 6" ~ 10" x 1" Dia. 6" ~ 10" x 1" Dia.
Feed Speed 20' ~ 66' Variable 20' ~ 66' Variable 20' ~ 66' Variable
Motor 3 PH, 220/440 V 3 PH, 220/440 V 3 PH, 220/440 V
Trim Saw 3 HP x 2 3 HP x 2 5 HP x 2
Grooving 2 HP x 2 2 HP x 2 3 HP x 2
Vertical Shaper 7-1/2 HP x 2 7-1/2 HP x 4 7-1/2 HP x 4
Sanding --- --- 2 HP x 2
Feeding 2 HP x 1 3 HP x 1 3 HP x 1
Width Setting 1 HP x 1 1 HP x 1 1 HP x 1

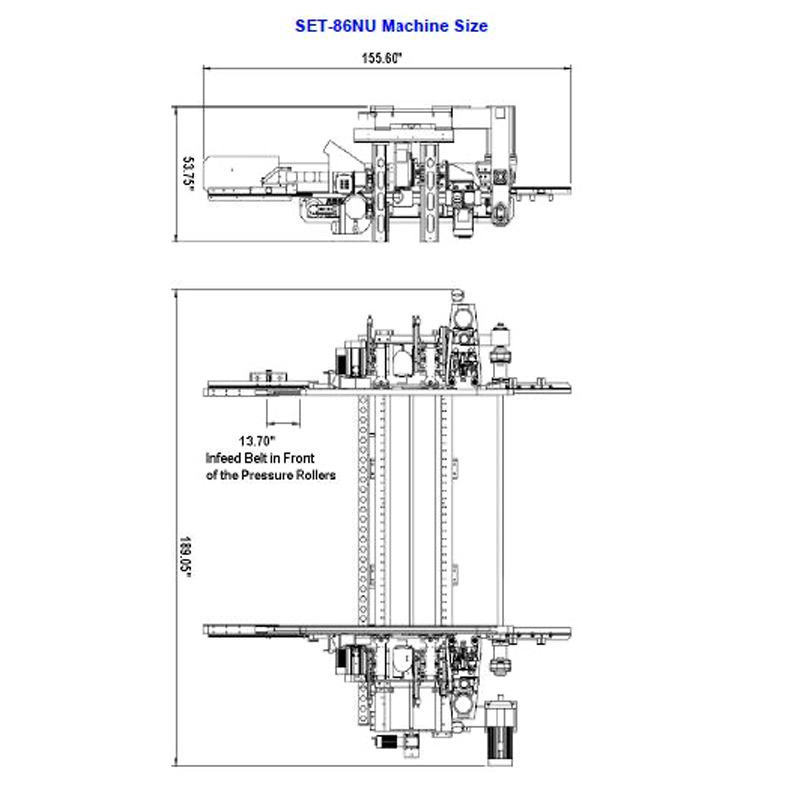

Machine Size (L x W x L) 14' x 9' x 5' 14' x 10' x 5' 14' x 14' x 5'
N.W. 9200 LBS 9800 LBS 16500 LBS
G.W. 10400 LBS 11000 LBS 19800 LBS
